Description
Description

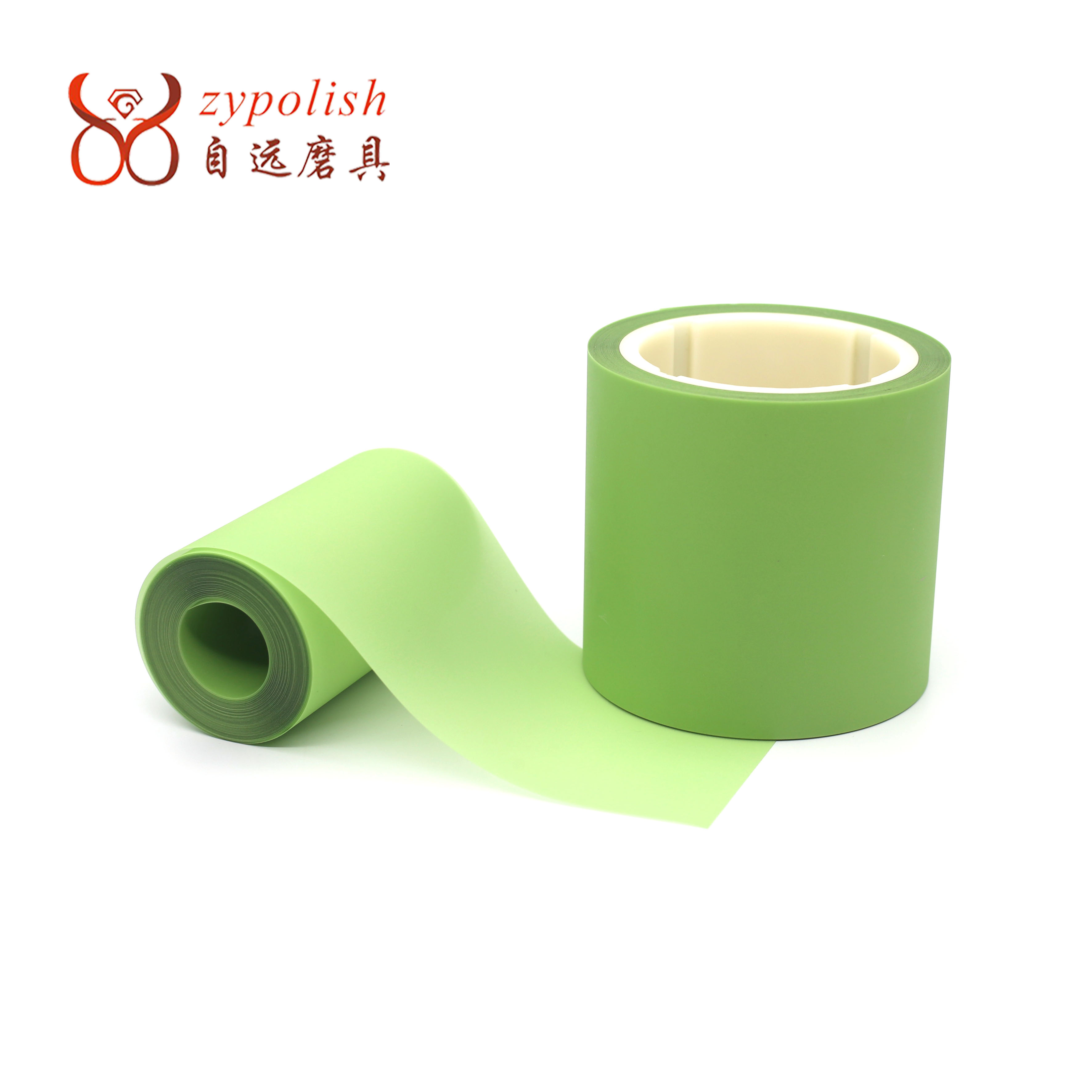

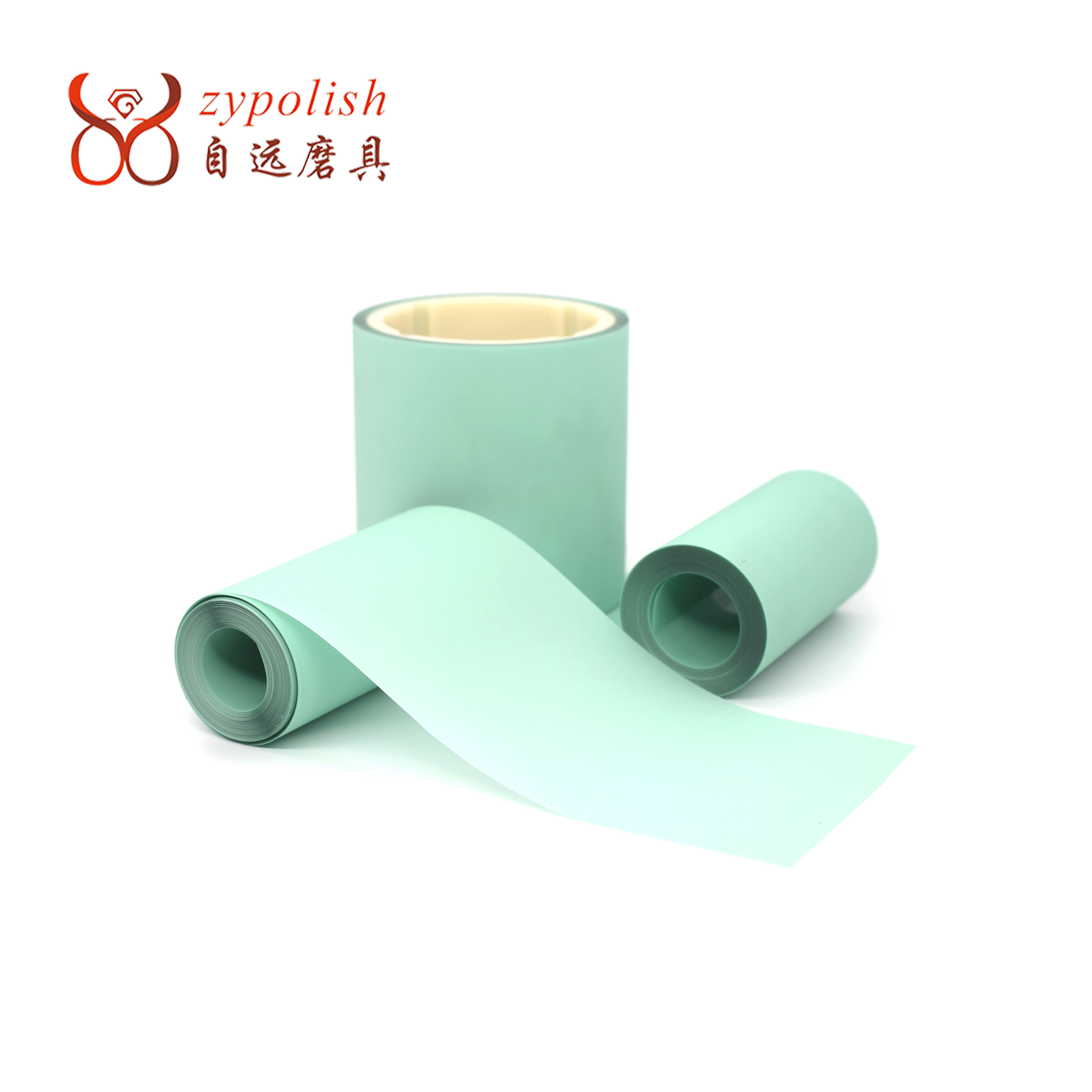

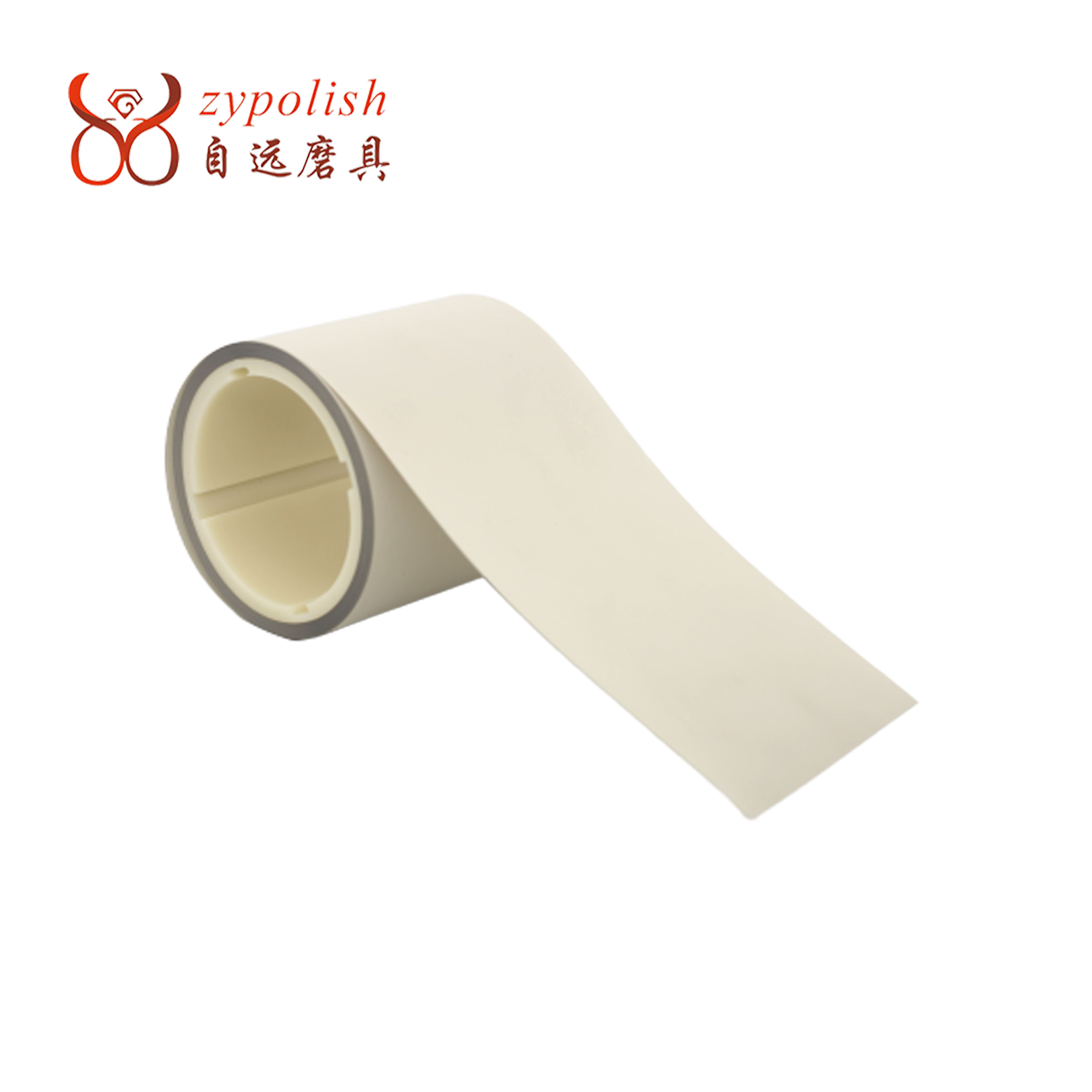

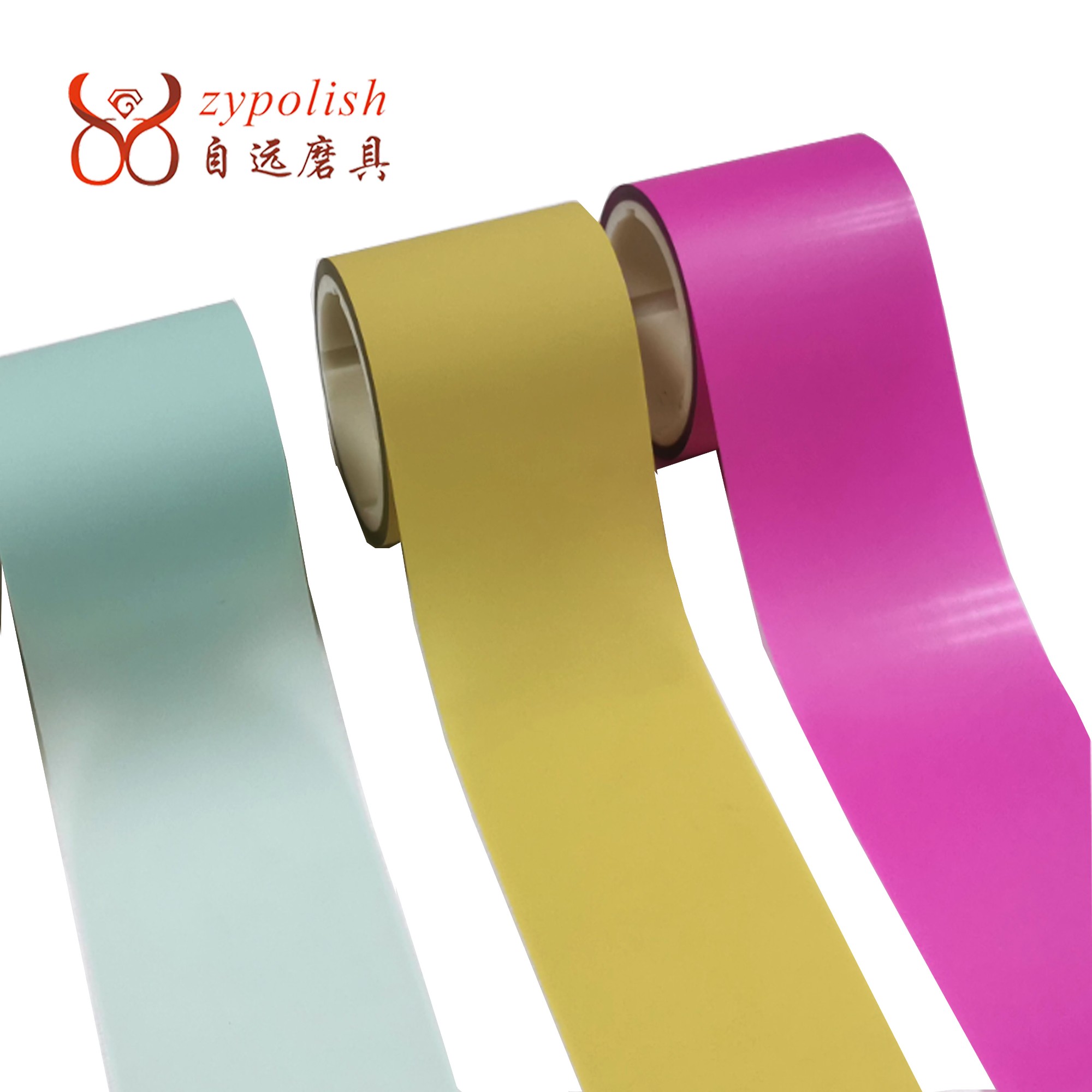

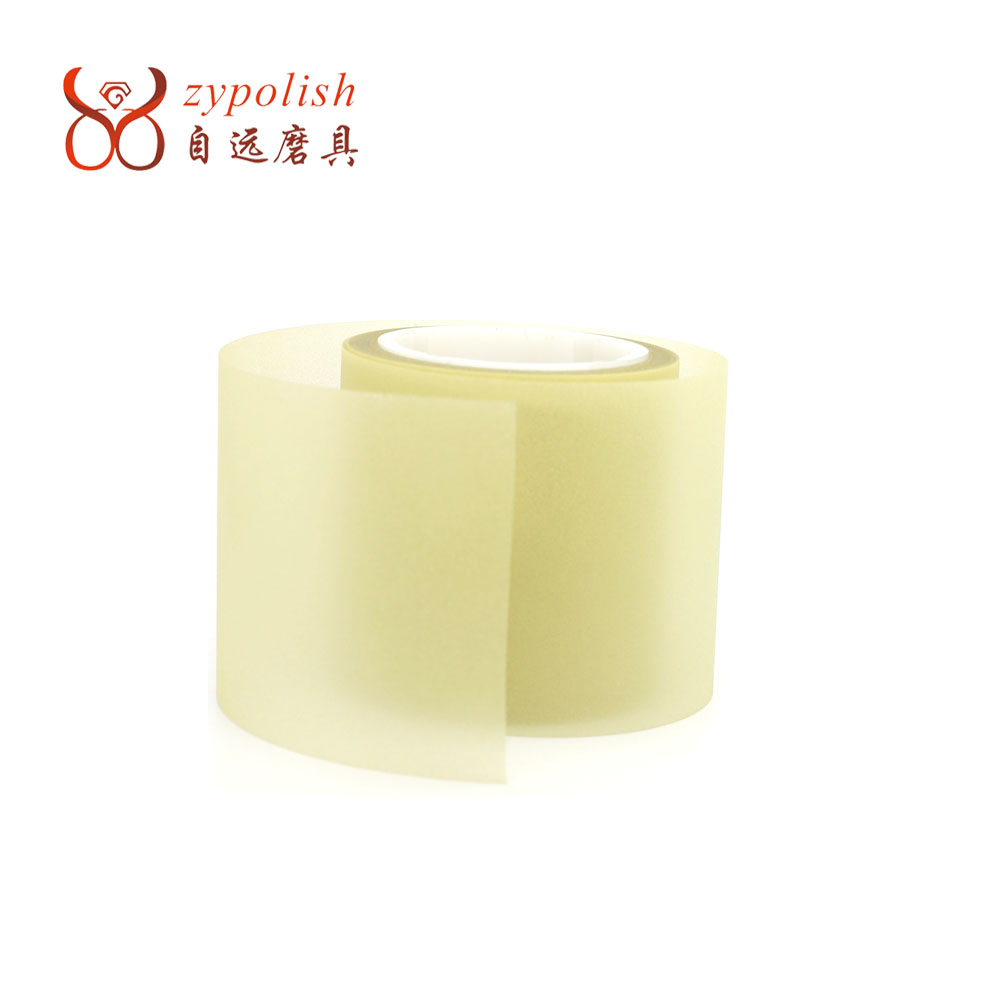

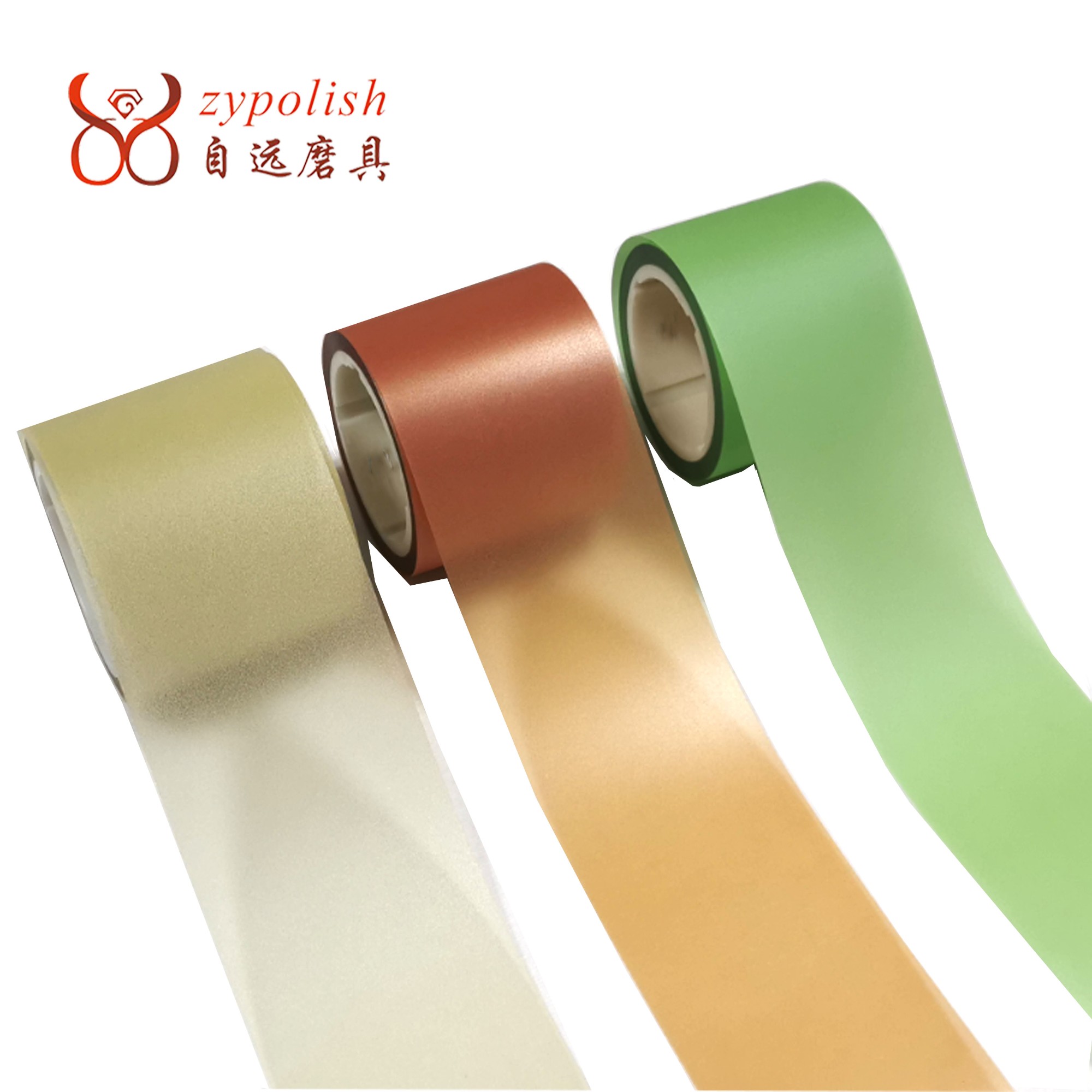

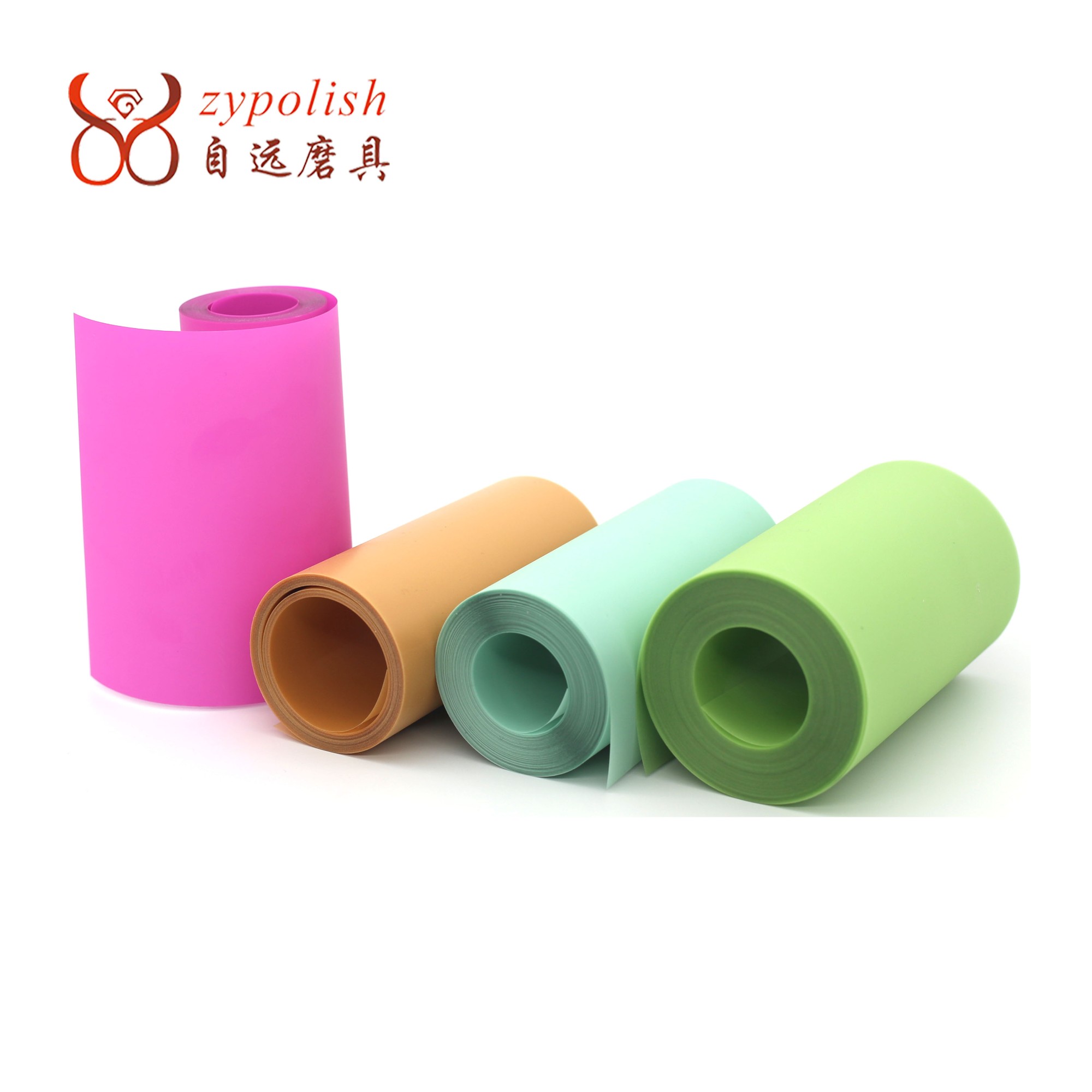

ZYPOLISH RC131 is produced by ultra-precision coating technology. Precisely graded diamond minerals are coated on a high strength, 3 or 5 mil polyester backing to provide a uniform and consistent finish. It is mainly used for grinding and polishing ceramic rollers, tungsten carbide rollers, anilox rollers and cemented carbide rollers. Grits available are 1μm, 3μm, 6μm, 9μm, 15μm, 30μm, 45μm and 60μm.
Advantage
1. High removal rate.
2. Consistent effect.
3. Perfect surface.
|

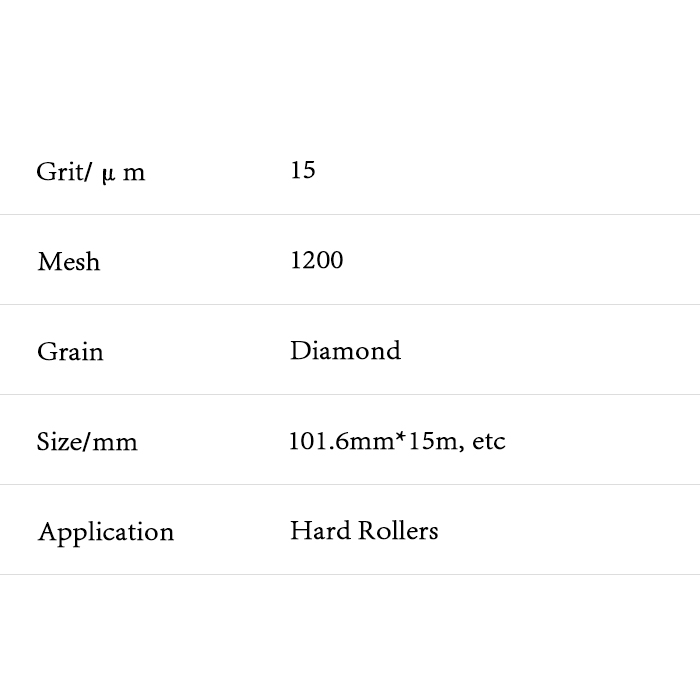

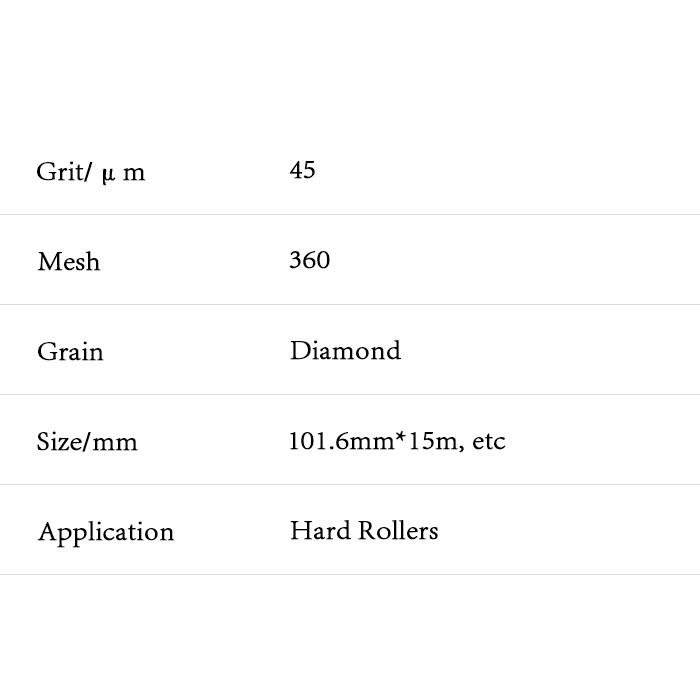

Product Name |
RC131 Diamond Lapping Film Roll |
||||
|
Product Type |
RC131-1 |
RC131-3 |
RC131-6 |
RC131-9 |
RC131-15 |
|

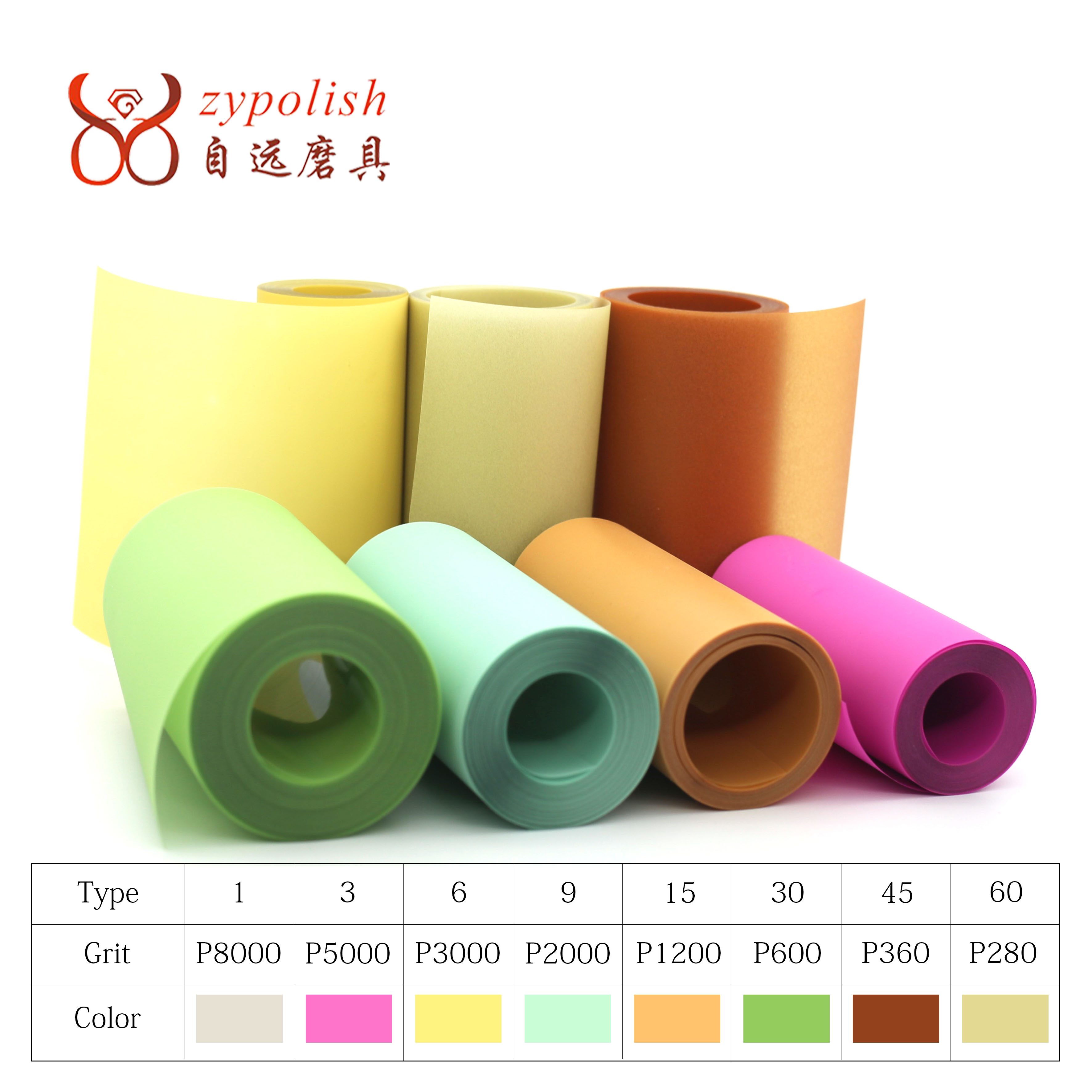

Color |
Off-White/Purle |
Pink/Rose |
Yellow |
Blue |
Eggshell |
|
Grit |
60/45/30/15/9/6/3/1 micron |
||||
|
Material |
Diamond |
||||
|
Size |
4 inch *10 feet (101.6mm*3m), 4 inch *50 feet (101.6mm*15m), 4 inch *150 feet (101.6mm*45m), customizable |
||||
|
Base Material |
Polyester composite film, PET |
||||
|
PET Thickness |
3mil(75μm), 5mil(125μm) |
||||

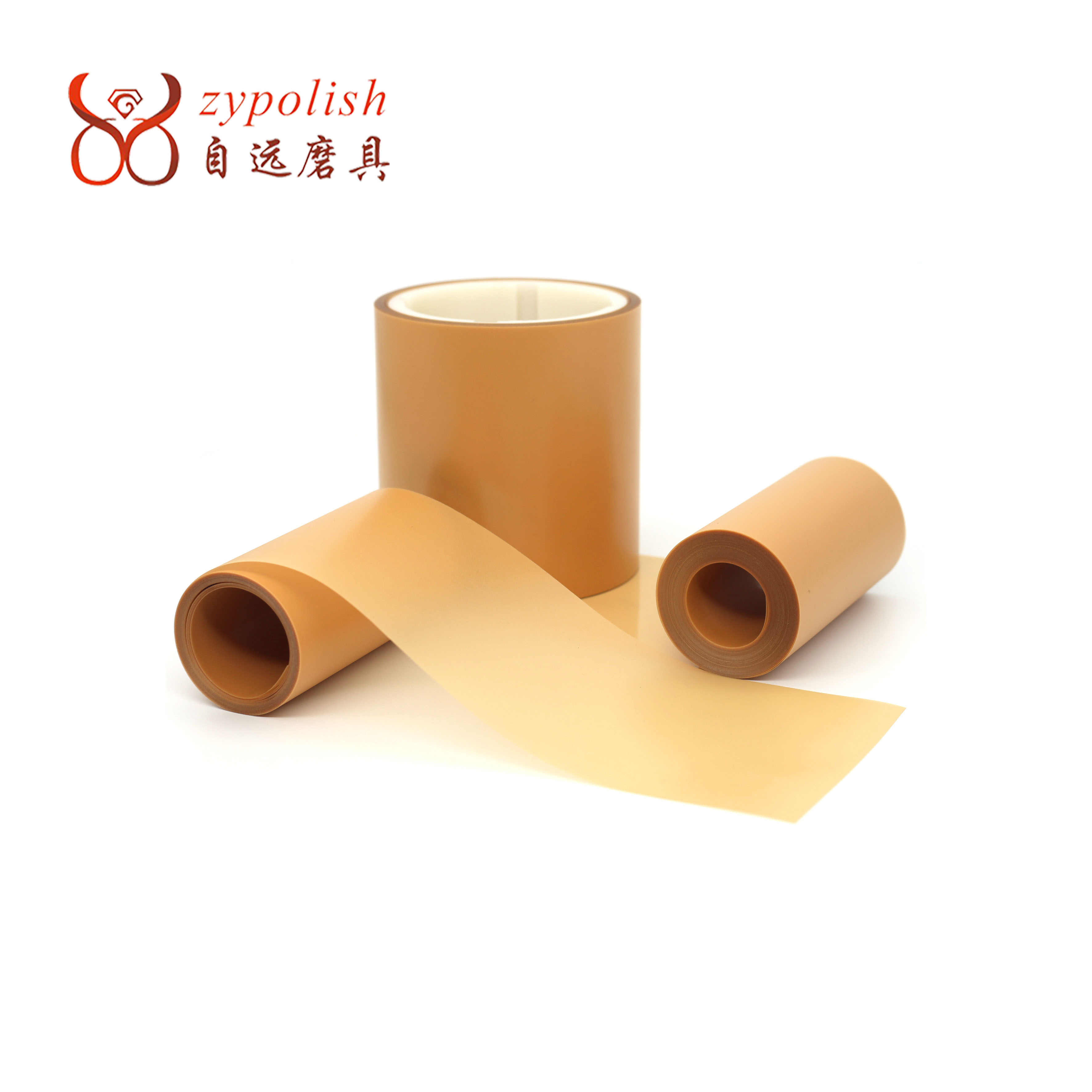

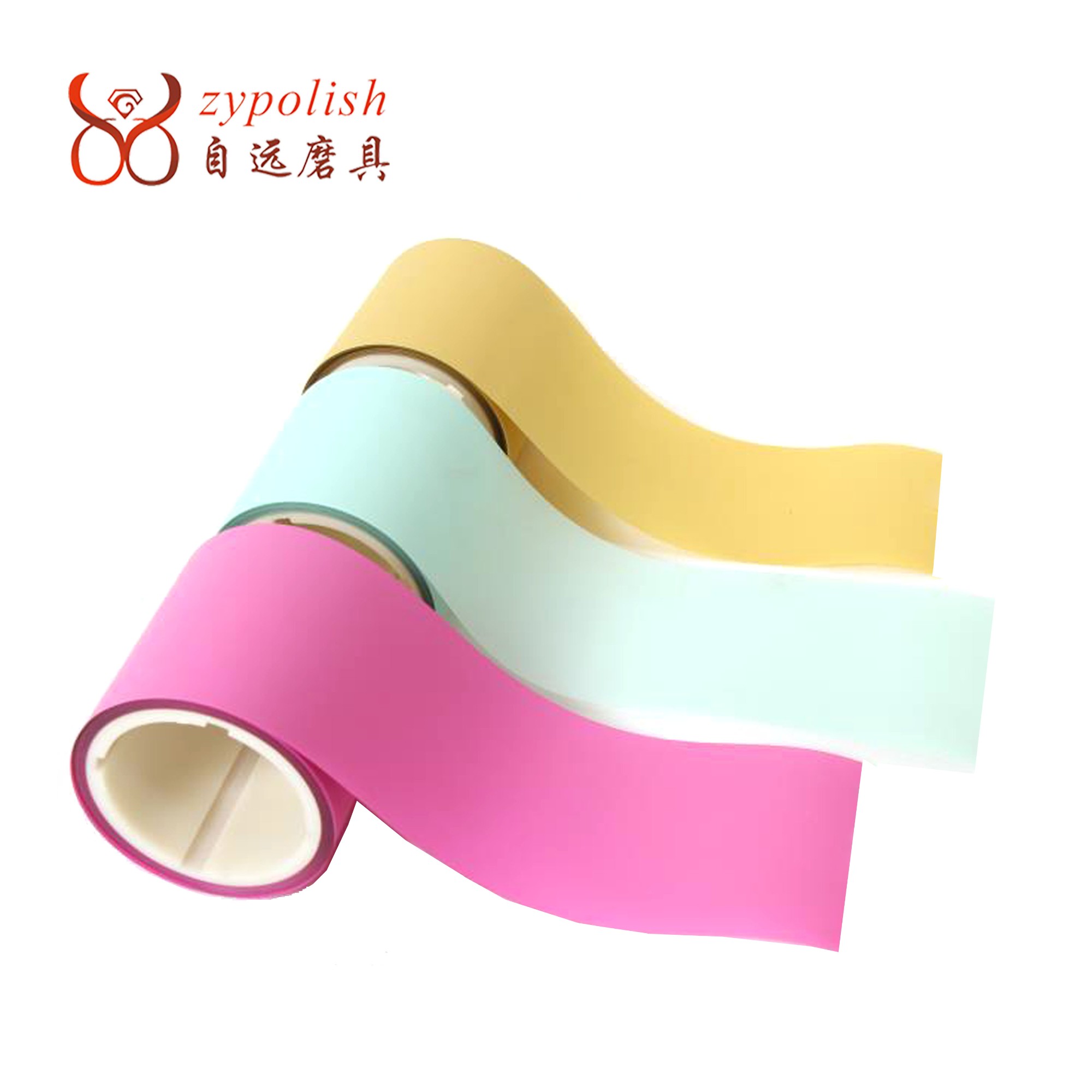

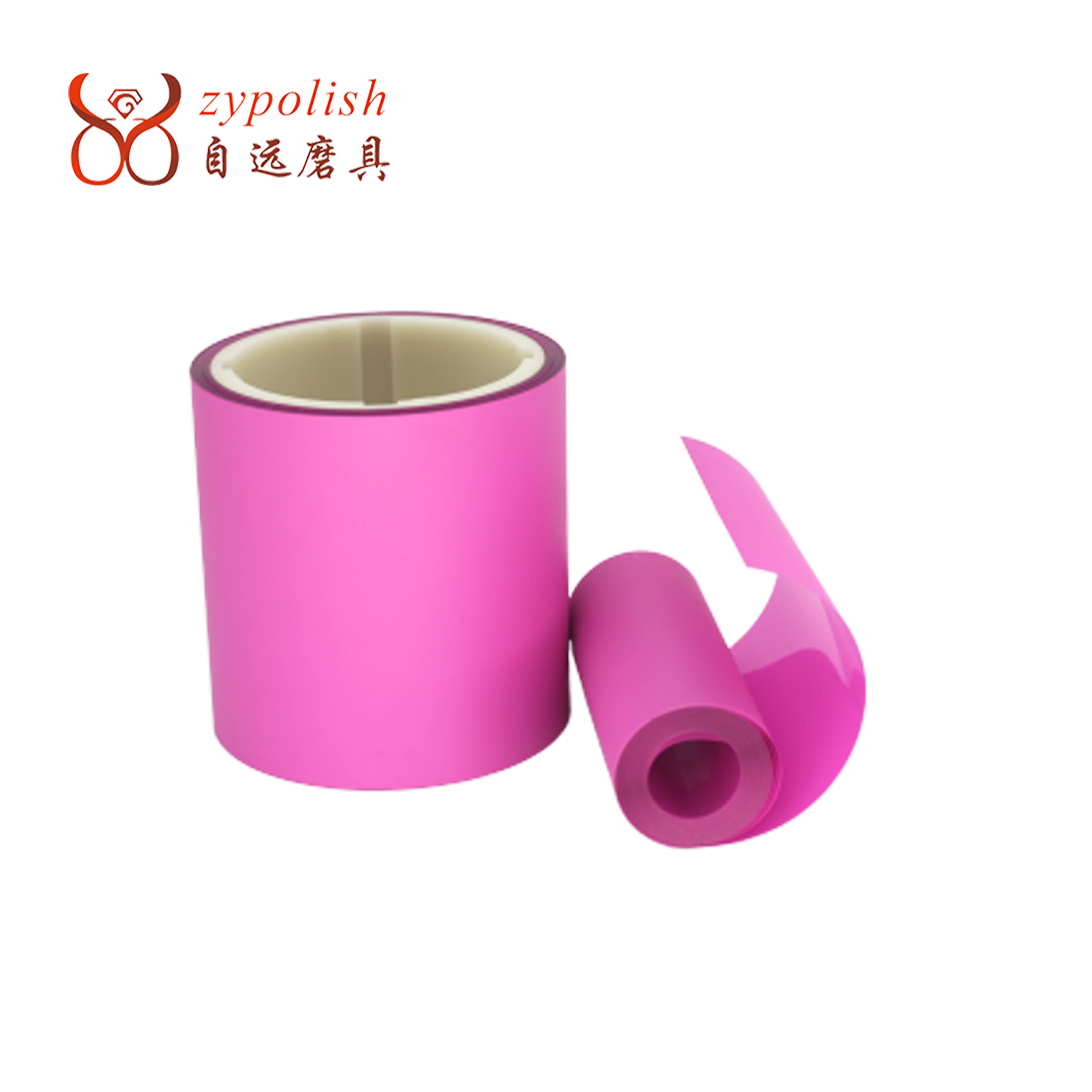

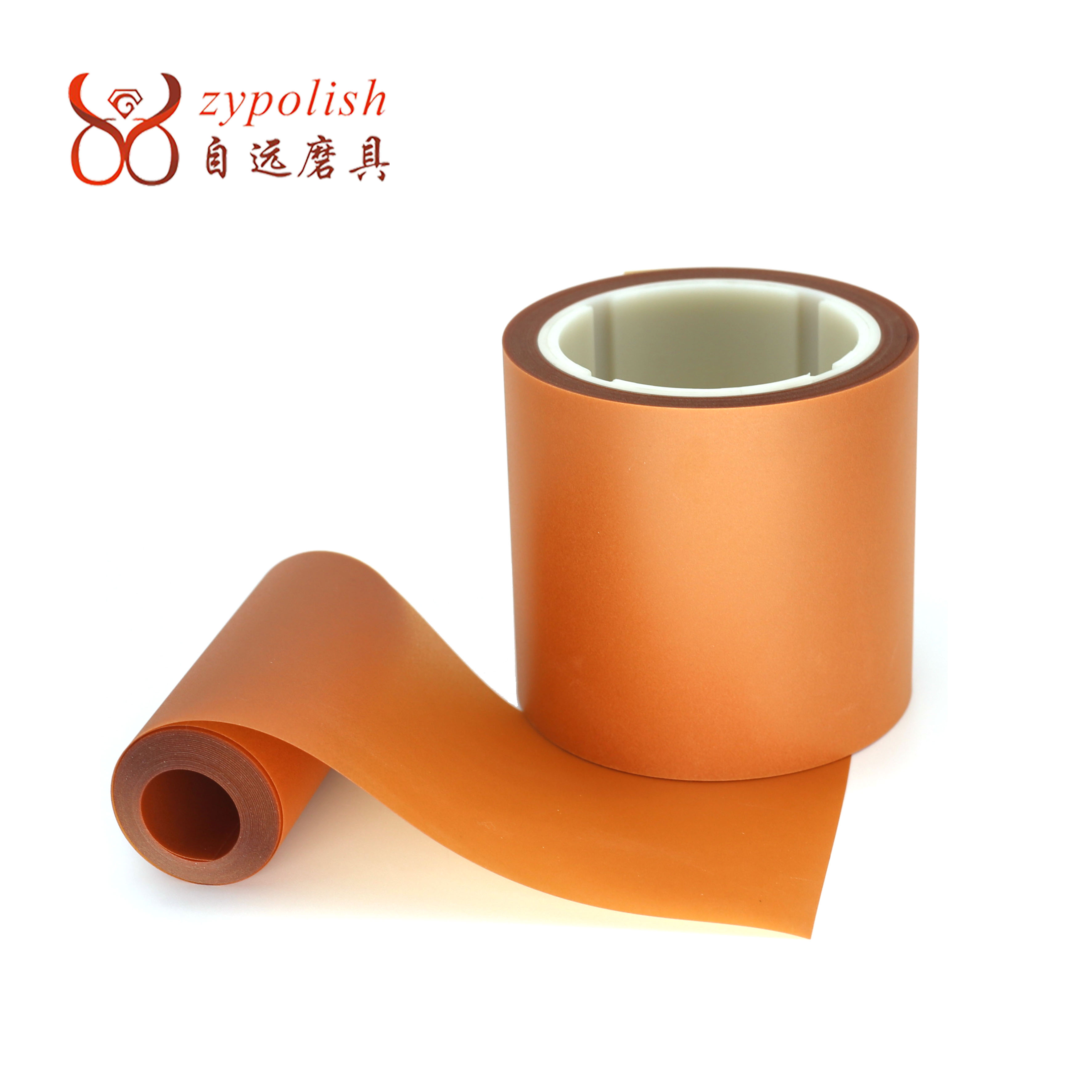

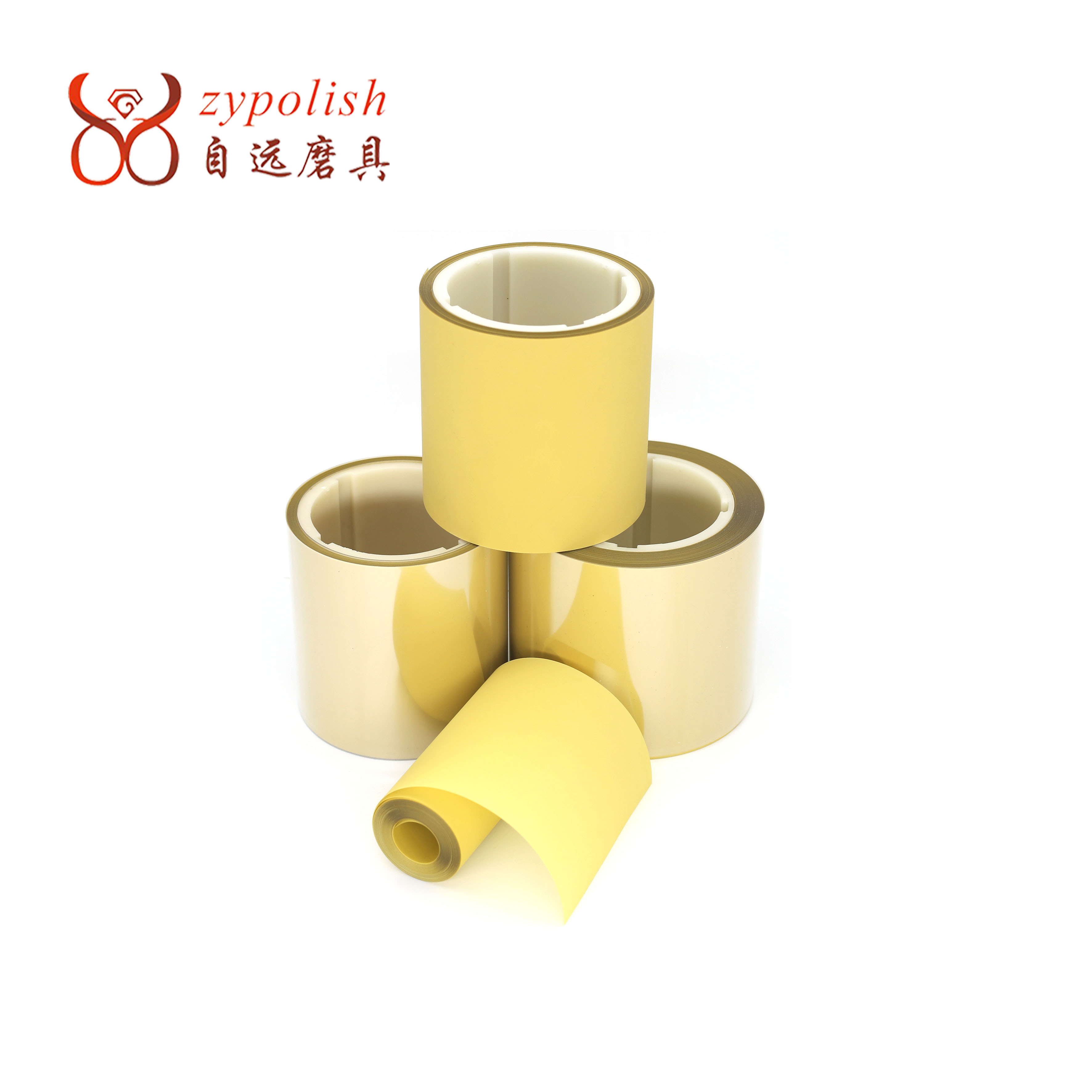

Details

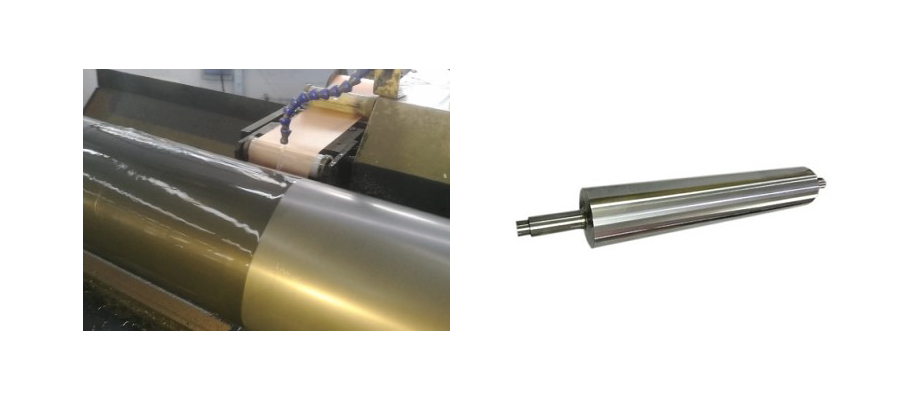

Application
Ceramic rollers, tungsten carbide rollers, anilox rollers and cemented carbide rollers.
